High quality load cell sensor

Tension compression strain gauge based load cell NS18

The tension and compression load cell NS18 offer a high level of corrosive resistance for use in harsh environments with IP67 protection class, available in a wide range of capacities from20kgto over 10 tones. The S type load cell is utilized metal foil strain gauge technology.
  • Item NO.:

    NS18
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    100% payment before shipment
  • Capacities:

    20-1000kg; 1.2-10t
  • Material:

    Steel Alloy
  • Dimension:

    70*64*25mm; 110*110*50mm
  • Rated Output:

    2.0mV/V
  • Protection Class:

    IP67 / IP68
Inquiry Now
Product Details

Alloy steel S type Load Cell NS18 (20-1000KG; 1.2-10T)

The tension and compression load cell NS18 offer a high level of corrosive resistance for use in harsh environments with IP67 protection class, available in a wide range of capacities from20kgto over 10 tones. The S type load cell is utilized metal foil strain gauge technology.


Key Features

Alloy steel construction with nickel plated treatment

Capacity: 20-1000KG; 1.2-10T

Protection class: IP67

Easy to install, stable & reliable


Usage & Applications
Hopper scales
Crane scales

Tension control and machine testing

Batching systems, blending & mixing systems, belt scales,etc

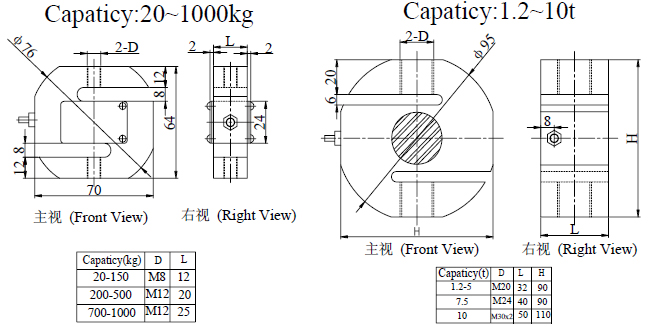

DimensionS type loadcell NS18

NS18 Specification

Rated Capacities

20, 30, 50, 75, 100, 150, 200, 250, 300, 500, 750 ( kg )
1, 1.2, 1.5, 2, 2.5, 3, 5, 7.5, 10  ( t )

Rated Output

2.0 mV/V±0.25%

Zero Balance

±0.0200 mV/V

Non-linearity

0.02 %R.O.

Hysteresis

0.02 %R.O.

Repeatability

0.02 %R.O.

30mins Creep

0.02 %R.O.

30mins Return

0.02 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./

Temperature Effect On Zero

0.003 %R.O./

Input Impedance

385±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Steel Alloy

Protection Class

IP67 / IP68

Cable

φ5×3m20-1000kg, φ6×3m1.2-10t

Recommended Platform Size

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
