Alloy steel S type Load Cell NS4 (2-5T)
S type load cell NS4 is suitable for many applications where a tension and compression load cell is required, for high accuracy measurements. The tension sensor is available for applications such as vessel weighing, material test machines, crane scale and hopper scale.
Key Features：
Utilizes Metal Foil Strain Gauge Technology
Alloy
steel construction with nickel plated treatment
Capacity: 2-5T
Long
term, reliable operation
Usage & Applications：
Hopper
scales
Crane scales
Tension control and machine testing
Batching systems, blending & mixing systems, belt scales,etc

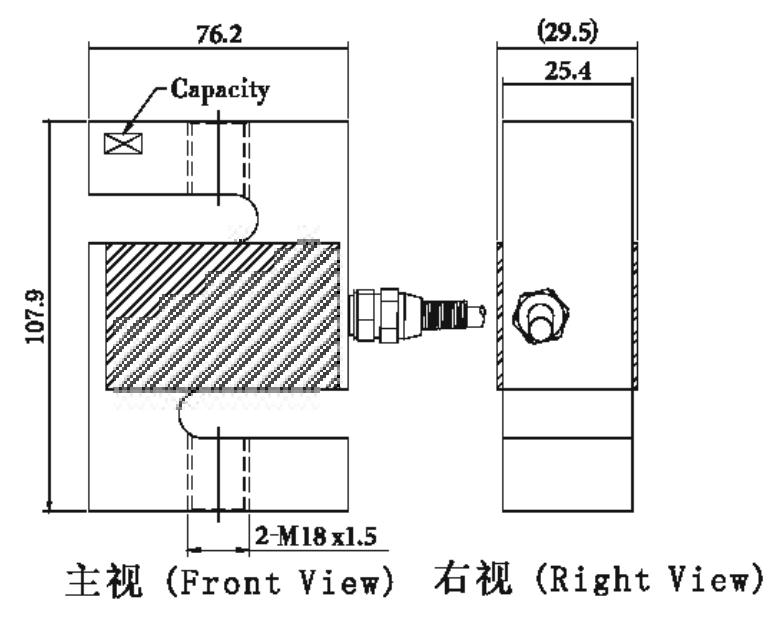

Dimension：
NS4 Specification：
Rated
Capacities
2，2.5，3，5 （t ）
Rated
Output
2.0
mV/V±0.25%；3.0 mV/V±0.25%
Zero
Balance
±0.0200
mV/V
Non-linearity
0.03
%R.O.
Hysteresis
0.03
%R.O.
Repeatability
0.03
%R.O.
30mins
Creep
0.03
%R.O.
30mins
Return
0.03
%R.O.
Safe
Overload
150
%R.O.
Ultimate
Overload
200
%R.O.
Temperature
Effect On Output
0.002
%R.O./℃
Temperature
Effect On Zero
0.003
%R.O./℃
Input
Impedance
390±15
Ω
Output
Impedance
350±5
Ω
Insulation
Impedance
≥5000 MΩ/(50VDC)
Recommended
Excitation
5~12
VDC
Maximum
Excitation
15
VDC
Operating Temperature Range
-20~60 ℃
Construction
Steel
Alloy
Protection
Class
IP67
/ IP68
Cable
φ5×6 m
Recommended
Platform Size
Mode
of Connection
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
