Low Capacity force sensor high precision S type load cell NS22

NS22 S type load cell is calibrated to national standards, with high accuracy 0.02% R.O. The strain gauge based load cell is made with aluminum alloy construction for low capacities, while steel alloy for higher capacities
  • Item NO.:

    NS22
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    100% payment before shipment
  • Capacities:

    2-5kg
  • Material:

    Aluminum Alloy
  • Dimension:

    50*52*10mm
  • Rated Output:

    1.0 or 2.0mV/V
  • Protection Class:

    IP66 / IP67
Inquiry Now
Product Details

Aluminum alloy S type Load Cell NS22 (2-5 KG)

NS22 S type load cell is calibrated to national standards, with high accuracy 0.02% R.O. The strain gauge based load cell is made with aluminum alloy construction for low capacities, while steel alloy for higher capacities


Key Features

Low profile

Aluminum alloy construction
Capacity: 2-5 KG

Easy to install, stable & reliable


Usage & Applications
Hopper scales
Crane scales

Tension control and machine testing

Batching systems, blending & mixing systems, belt scales,etc

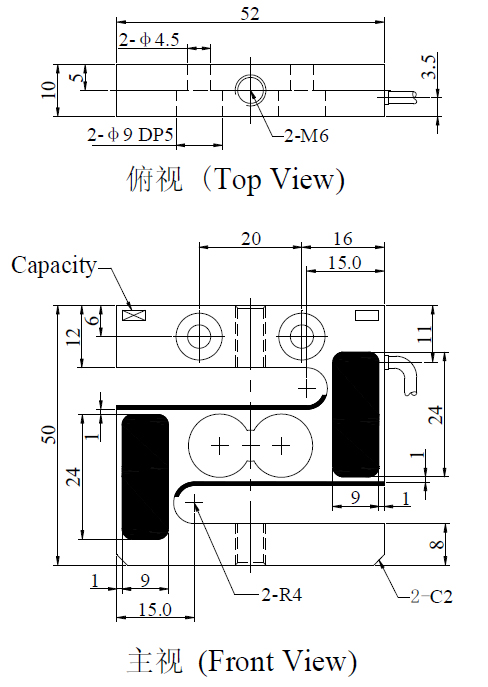

Dimension

S type load cell NS22

NS22 Specification

Rated Capacities

2, 5 (kg)

Rated Output

1.0 mV/V±10%;2.0 mV/V±10%

Zero Balance

±0.0200 mV/V

Non-linearity

0.03 %R.O.

Hysteresis

0.03 %R.O.

Repeatability

0.03 %R.O.

30mins Creep

0.03 %R.O.

30mins Return

0.03 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./

Temperature Effect On Zero

0.003 %R.O./

Input Impedance

390±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

≥2000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Aluminum  Alloy

Protection Class

IP66 / IP67

Cable

φ3×2 m

Recommended Platform Size

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
