Single Ended Shear Beam Load Cell NB9

Single ended shear beam load cells are ideally suited to all industrial weighing scale and general load measurement applications, including vessel, tank, silo and process weighing. The beam load cell range starts with capacities from 500kg through to 3 tones.
  • Item NO.:

    NB9
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    100% payment before shipment
  • Capacities:

    0.5-3t
  • Material:

    Steel Alloy
  • Dimension:

    203*39*43mm
  • Rated Output:

    2.0mV/V
  • Protection Class:

    IP67 / IP68
Inquiry Now
Product Details

Single Ended Shear Beam Load Cell NB9 (0.5-3 T)

Single ended shear beam load cells are ideally suited to all industrial weighing scale and general load measurement applications, including vessel, tank, silo and process weighing. The beam load cell range starts with capacities from 500kg through to 3 tones.


Key Features

Low profile

Alloy steel construction with nickel plated treatment

Capacity: 0.5-3 t


Usage & Applications

Hopper scales
Truck scales
Industrial weighing system


Dimension

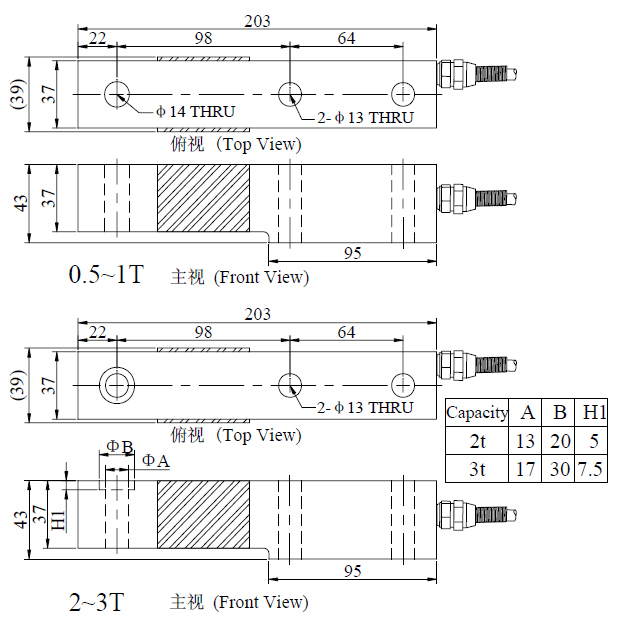

shear beam load cell NB9

NB9 Specification

Rated Capacities

0.5122.53t

Rated Output

2.0 mV/V±0.25%

Zero Balance

±0.0200 mV/V

Non-linearity

0.03 %R.O.

Hysteresis

0.03 %R.O.

Repeatability

0.03 %R.O.

30mins Creep

0.03 %R.O.

30mins Return

0.03 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./

Temperature Effect On Zero

0.003 %R.O./

Input Impedance

390±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Steel Alloy

Protection Class

IP67 / IP68

Cable

φ5×4m

Recommended Platform Size

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
