Single Ended load cell weighing sensor for hopper scales NB4 (10 T)

Single Ended Load Cells are ideal for a wide range of applications such as hopper scales or fixed suspended weigh systems, process weighing and low profile installations. The Shear Beam load cellsare easily mounted on top with threaded hole and two through holes.


Key Features

Alloy steel construction with nickel plated treatment

Capacity: 10 t

Environmentally Sealed to IP67


Usage & Applications

Hopper scales
Truck scales
Industrial weighing system

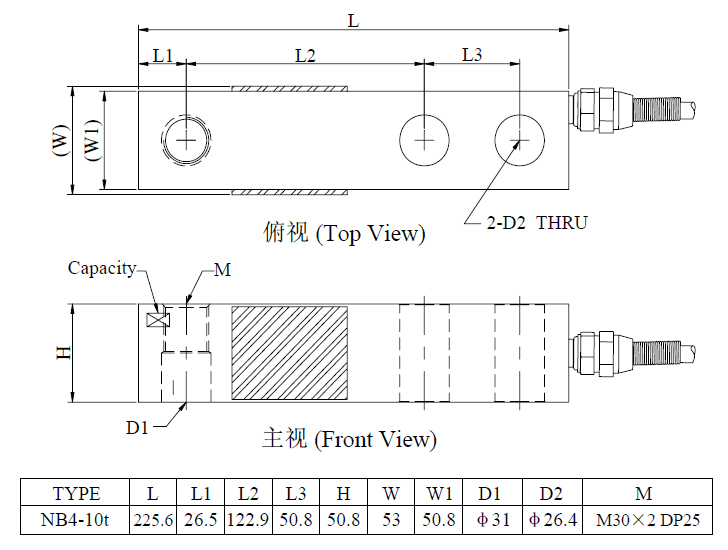

Dimensionshear beam load cell NB4

NB4 Specification

Rated Capacities

10 (t)

Rated Output

2.0 mV/V±0.15%3.0 mV/V±0.15%

Zero Balance

±0.0200 mV/V

Non-linearity

0.03 %R.O.

Hysteresis

0.03 %R.O.

Repeatability

0.03 %R.O.

30mins Creep

0.03 %R.O.

30mins Return

0.03 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./

Temperature Effect On Zero

0.003 %R.O./

Input Impedance

390±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Steel Alloy

Protection Class

IP67 / IP68

Cable

φ6×6m

Recommended Platform Size

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
