Nickel plated steel alloy Shear Beam Load Cell NB5

NB5 is a steel alloy shear beam load cell sealed to IP67, nickel plated and suitable for most weighing applications. The hopper scale Load cell capacities ranging from 500kg to 3t are available.
  • Item NO.:

    NB5
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    100% payment before shipment
  • Capacities:

    0.5-3t
  • Material:

    Steel Alloy
  • Dimension:

    130*35.3*46.3mm
  • Rated Output:

    2.0 or 3.0mV/V
  • Protection Class:

    IP67 / IP68
Inquiry Now
Product Details

Nickel plated steel alloy Shear Beam Load Cell NB5 (0.5-3 T)

NB5 is a steel alloy shear beam load cell sealed to IP67, nickel plated and suitable for most weighing applications. The hopper scale Load cell capacities ranging from 500kg to 3t are available.


Key Features

Alloy steel nickel plated construction

Robust design for heavy-duty use in the industrial sector

Wide range of capacities: 500 kg-3000 kg


Usage & Applications

Hopper scales
Truck scales
Industrial weighing system

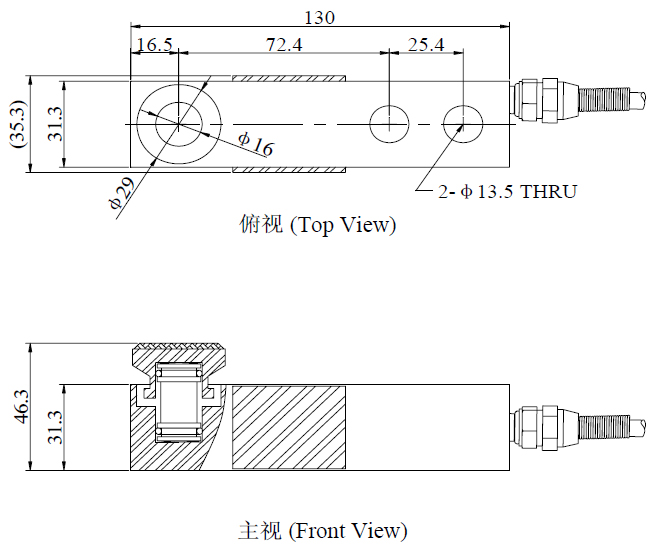

Dimensionshear beam load cell NB5

NB5 Specification

Rated Capacities

0.5122.53t

Rated Output

2.0 mV/V±0.15%3.0 mV/V±0.15%

Zero Balance

±0.0200 mV/V

Non-linearity

0.03 %R.O.

Hysteresis

0.03 %R.O.

Repeatability

0.03 %R.O.

30mins Creep

0.03 %R.O.

30mins Return

0.03 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./

Temperature Effect On Zero

0.003 %R.O./

Input Impedance

390±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Steel Alloy

Protection Class

IP67 / IP68

Cable

φ5×3m

Recommended Platform Size

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
