High quality load cell sensor

Pressure transducer Stainless steel Force Sensor NP3

The NP3 is an Oil Forced Pressure Transducer. With a special purpose for testing force, the stainless steel force sensor is suitable for Force measurement, Fork Lift Truck scale, Industrial weighing scale, Automation weighing systems.
  • Item NO.:

    NP3
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    100% payment before shipment
  • Capacities:

    100-500kgf/cm2
  • Material:

    Stainless Steel / steel alloy
  • Dimension:

    φ25*60mm
  • Rated Output:

    1.0mV/V
  • Protection Class:

    IP67 / IP68
Inquiry Now
Product Details

Pressure transducer NP3

The NP3 is an Oil Forced Pressure Transducer. With a special purpose for testing force, the stainless steel force sensor is suitable for Force measurement, Fork Lift Truck scale, Industrial weighing scale, Automation weighing systems.


Key Features:

Low profile

Stainless Steel / steel alloy Construction
Capacity:
100,200,350,500 ( kgf / cm2 )
Accuracy:0.2%R.O.
Protection class:IP67/PI68

Rated Output: 1.0 mV/V±1%



Usage & Applications:

Pressure transducer

Force measurement

Fork Lift Truck

Industrial weighing system

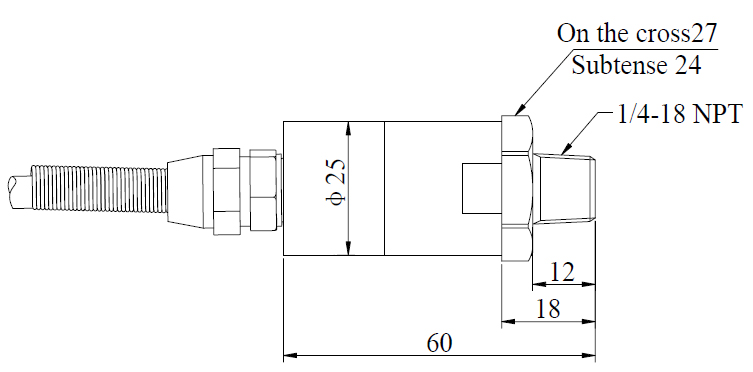

Dimension:Pressure transducer NP3

NP3 Specification:

Rated Capacities

100, 200, 350, 500 (kgf / cm2 )

Rated Output

1.0 mV/V±1%

Zero Balance

±0.0200 mV/V

Non-linearity

0.2 %R.O.

Hysteresis

0.2 %R.O.

Repeatability

0.2 %R.O.

30mins Creep

0.2 %R.O.

30mins Return

0.2 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.02 %R.O./℃

Temperature Effect On Zero

0.02 %R.O./℃

Input Impedance

390±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

≥5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60 ℃

Construction

Steel Alloy;  Stainless Steel

Protection Class

IP67 / IP68

Cable

φ5×1.8m

Recommended Platform Size


Mode of Connection

Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-)

Got Free Inquiry Now

We will contact you as soon as possible!

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

Refresh the image
