Crane type Load Cell NY3 (2-20T)
Crane type load cell NY3 is made with steel alloy material and compact design, suitable for silo tank weighing systems. The crane scale load cell precision is 0.03% R.O, with wide capacity range up to 20t.
Key Features：
Crane type shaped
Steel alloy construction
Capacity: 2-20T
Accuracy:0.03%R.O.
Protection class:IP67/PI68
Rated Output: 2.0 mV/V±0.25%
Usage & Applications：
Crane scales
Hopper scales
Batching scales
Silo tank weighing system

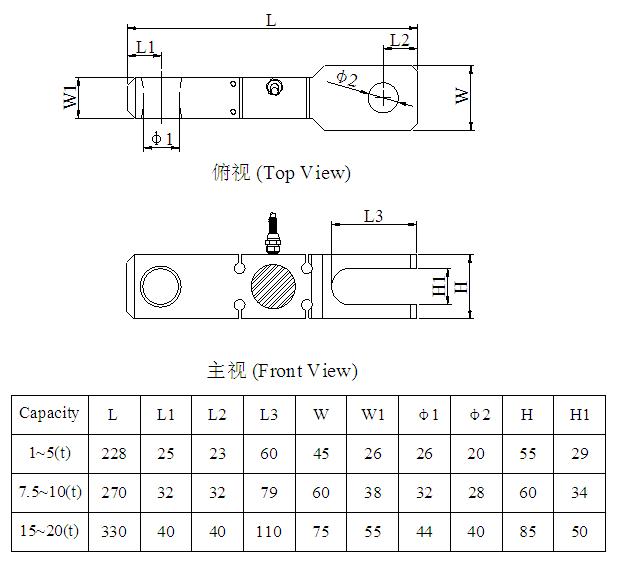

Dimension：
NY3 Specification：
Rated Capacities
2，3，5，7.5，10，20（t）
Rated Output
2.0 mV/V±0.25%
Zero Balance
±0.0200 mV/V
Non-linearity
0.03 %R.O.
Hysteresis
0.03 %R.O.
Repeatability
0.03 %R.O.
30mins Creep
0.03 %R.O.
30mins Return
0.03 %R.O.
Safe Overload
150 %R.O.
Ultimate Overload
200 %R.O.
Temperature Effect On Output
0.003 %R.O./℃
Temperature Effect On Zero
0.003 %R.O./℃
Input Impedance
390±15 Ω
Output Impedance
350±5 Ω
Insulation Impedance
≥5000 MΩ/(50VDC)
Recommended Excitation
5~12 VDC
Maximum Excitation
15 VDC
OperatingTemperatureRange
-20~60 ℃
Construction
Steel Alloy
Protection Class
IP67 / IP68
Cable
φ6×1 m
Recommended Platform Size
Mode of Connection
Red（EXC+）,Black（EXC-）,
Green（SIG+）,White（SIG-）
