Nickel plated​ steel alloy double ended shear beam Load Cell ND1

The ND1 is a double ended shear beam load cell, Painted Alloy Steel mounting assembly load cell for a wide capacity range for Truck Scale, Industrial weighing systems, Rail scale, Hopper scale, Road scale, Potting Compound with waterproof connector sealed to guarantee stable quality of performance.
  • Item NO.:

    ND1
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    100% payment before shipment
  • Capacities:

    3-75KLB
  • Material:

    Steel Alloy
  • Dimension:

    7.5*1.22*1.22inch; 8.75*1.44*1.94inch; 13.5*2.44*2.94inch
  • Rated Output:

    3.0mV/V
  • Protection Class:

    IP67 / IP68
Inquiry Now
Product Details

Double shear beam Load Cell ND1 (3-75KLB)

The ND1 is a double ended shear beam load cell, Painted Alloy Steel mounting assembly load cell for a wide capacity range for Truck Scale, Industrial weighing systems, Rail scale, Hopper scale, Road scale, Potting Compound with waterproof connector sealed to guarantee stable quality of performance.


Key Features

Double shear beam shaped

Steel Alloy material with potting Compound

Capacity: 3~75klb

Precision: 0.03%R.O.

Protection class: IP67/PI68

Rated Output : 3.0 mV/V±0.25%



Usage & Applications

Hopper scales

Truck scales

Rail scales

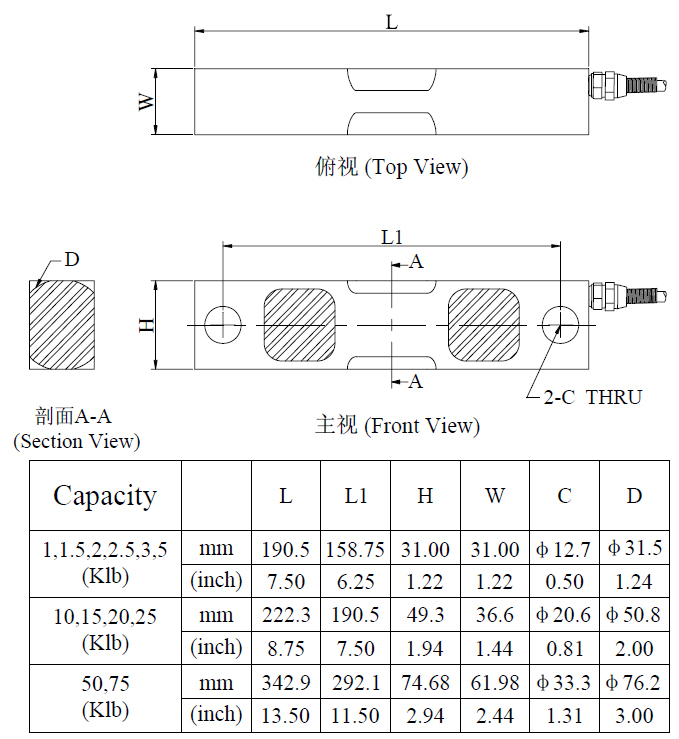

Dimensiondouble shear beam load cell ND1

ND1 Specification

Rated Capacities

35101520255075Klb

Rated Output

3.0 mV/V±0.25%

Zero Balance

±0.0200 mV/V

Non-linearity

0.03 %R.O.

Hysteresis

0.03 %R.O.

Repeatability

0.03 %R.O.

30mins Creep

0.03 %R.O.

30mins Return

0.03 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./

Temperature Effect On Zero

0.003 %R.O./

Input Impedance

740±15 Ω

Output Impedance

700±5 Ω

Insulation Impedance

5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Steel Alloy

Protection Class

IP67 / IP68

Cable

φ6×6m (3-5 klb); φ6×10m (10-75 klb)

Recommended Platform Size

Mode of Connection

RedEXC+,BlackEXC-,
Green
SIG+,WhiteSIG-
