High quality load cell sensor

Digital load cell single point weighing sensor 60-500kg DNA2

Digital Load Cells can provide an all-in-one, single-point solution all kinds of automatic weighing applications. Since digital sensors are designed with built-in electronics for signal processing, Digital single point load cells are ideal for applications that require compact solutions without the extra bulk of a digital display or an external amplifier board.
  • Item NO.:

    DNA2
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    100% payment before shipment
  • Protocol:

    RS485/RS232
  • Baud rates:

    2400~115200bps
  • Calibration:

    Calibration-free
Inquiry Now
Product Details

Digital weighing sensor load cell single point DNA2 (60-500kg)

Digital Load Cells can provide an all-in-one, single-point solution all kinds of automatic weighing applications. Since digital sensors are designed with built-in electronics for signal processing, Digital single point load cells are ideal for applications that require compact solutions without the extra bulk of a digital display or an external amplifier board.


Key Features:

1.Equipped with a multi-protocol communication interface, RS485, RS232...

2.Robust, accurate, intelligent and easy to use

3.Calibration-free, various baud rates, good anti-interference

4.Available with software dedicated to the automatic weighing applications


Usage & Applications:

Intelligent garbage recycling cabinet

Intelligent weighing shelves

Smart vending machine

Internet of Things weighing systems

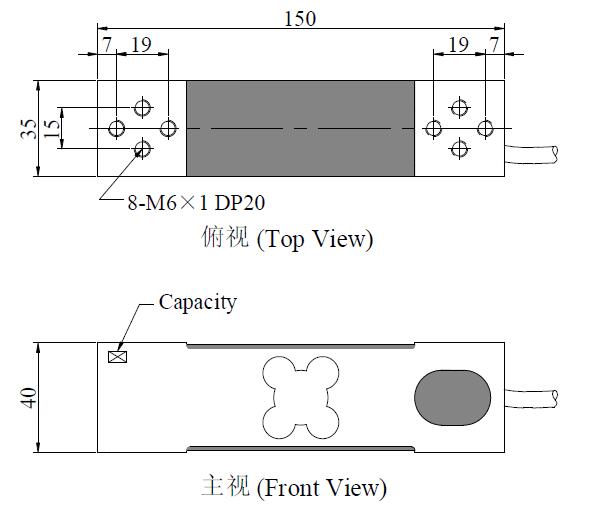

Dimension:


DNA2 Specification:

Rated Capacities

   60~500(kg)

Division

20000

Combined Precision

0.02 %R.O.

30mins Creep

0.02 %R.O.

Temperature Effect On Output

0.002 %R.O./℃

Temperature Effect On Zero

0.003 %R.O./℃

Safe Overload

150 %R.O.

Operating Temperature Range

-10~40 ℃

Storage Temperature Range

-20~60 ℃

Bridge Impedance

 350±5 Ω

Recommended Excitation

9 VDC

Operating Excitation Range

6~12 VDC

Construction

Aluminum Alloy

Protection Class

IP65 / IP66

Cable

φ5×2m

Recommended Platform Size

350×450 mm;400×500 mm

Data Rate

5~40 Times/sec

Communication Method

RS485/RS232

Communication Rate

2400~115200Bps (Default 19200bps)

Mode of Connection

 Red(VCC),Black(GND),Green(RS485-A/RX),White(RS485-B/TX)
