Low profile single point load cell scale sensor NA22

NA22 is a low profile weight scale sensor with aluminum construction and surface anodized, suitable for a wide range of retail scales. This Low Profile Aluminum Sensor is available in the capacities: 10, 20,40kg.
  • Item NO.:

    NA22
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    100% payment before shipment
  • Capacities:

    10-40kg
  • Material:

    Aluminum Alloy
  • Dimension:

    130*24*22mm
  • Rated Output:

    2.0mV/V
  • Protection Class:

    PI65
Inquiry Now
Product Details

Low Profile Load Cell NA22

NA22 is a low profile weight scale sensor with aluminum construction and surface anodized, suitable for a wide range of retail scales. This Low Profile Aluminum Sensor is available in the capacities: 10, 20,40kg.


Key Features

Calibrated to national standards

Aluminum alloy construction

Compact Design

Easy to install


Usage & Applications

price computing scales
counting scales
weighing scales
retail scales

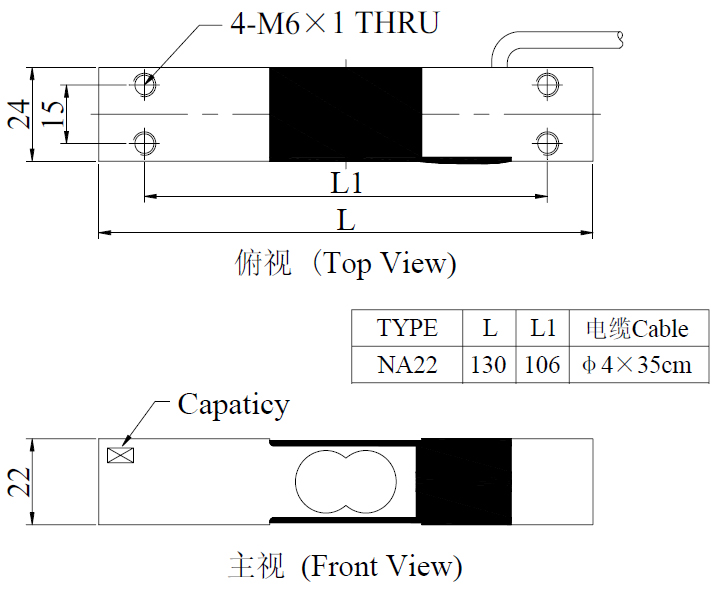

Dimension

NA22 Specification

Rated Capacities

1020303540kg

Rated Output

2.0 mV/V±10%

Zero Balance

±0.0200 mV/V

Non-linearity

0.02 %R.O.

Hysteresis

0.02 %R.O.

Repeatability

0.02 %R.O.

30mins Creep

0.02 %R.O.

30mins Return

0.02 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.005 %R.O./

Temperature Effect On Zero

0.005 %R.O./

Input Impedance

400±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

≥5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Aluminum Alloy

Protection Class

IP65

Cable

φ4×0.35m

Recommended Platform Size

300×300 mm

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
