Low profile pancake Aluminum Load Cell for Batching Scale 50-500kg NQ1

The NQ1 is a smaller dimension Aluminum Wheel shaped load cell for a wide capacity range for Batching Scale, Industrial weighing systems, Potting Compound with waterproof connector sealed to guarantee stable quality of performance.
  • Item NO.:

    NQ1
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    100% payment before shipment
  • Capacities:

    50-500kg
  • Material:

    Aluminum Alloy
  • Dimension:

    φ50*23mm
  • Rated Output:

    1.0mV/V
  • Protection Class:

    IP66 / IP67
Inquiry Now
Product Details

Aluminum pancake wheel shaped Load Cell NQ1 (50-500KG)

The NQ1 is a smaller dimension Aluminum Wheel shaped load cell for a wide capacity range for Batching Scale, Industrial weighing systems, Potting Compound with waterproof connector sealed to guarantee stable quality of performance.


Key Features

Smaller dimension

Aluminum Alloy material with potting Compound

Capacity: 50~500kg

Precision: 0.02%R.O.

Protection class: IP66/PI67

Rated Output : 1.0 mV/V±0.5%



Usage & Applications

Batching scales
Industrial weighing system

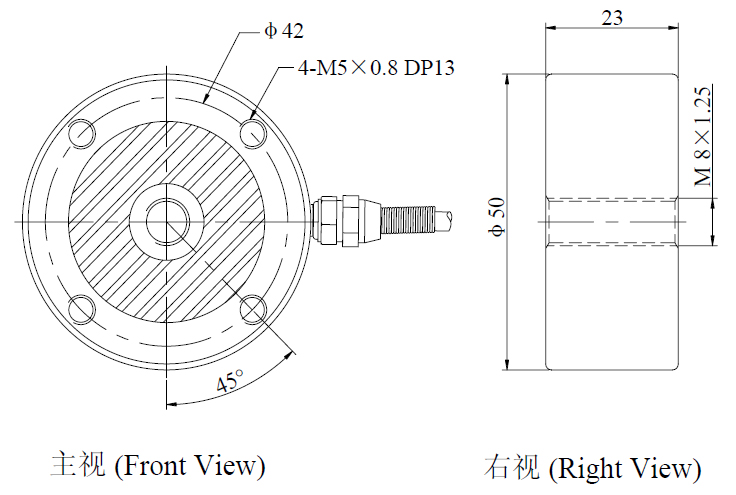

Dimension

NQ1 Specification

Rated Capacities

50~500kg

Rated Output

1.0 mV/V±0.5%

Zero Balance

±0.0200 mV/V

Non-linearity

0.05%R.O.0.03%R.O.

Hysteresis

0.05%R.O.0.03%R.O.

Repeatability

0.05%R.O.0.03%R.O.

30mins Creep

0.05%R.O.0.03%R.O.

30mins Return

0.05%R.O.0.03%R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.005 %R.O./

Temperature Effect On Zero

0.005 %R.O./

Input Impedance

410±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Aluminum Alloy

Protection Class

IP66 / IP67

Cable

φ5×3m

Recommended Platform Size

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
