High quality load cell sensor

Kitchen scale Load Cell Low capacity weight sensor NA27

The NA27 is a low capacity electronic scale load cell and can be used individually in kitchen scales and portable scales. The moment insensitive design allows for simple installations.
  • Item NO.:

    NA27
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    100% payment before shipment
  • Capacities:

    0.6-10kg
  • Material:

    Aluminum Alloy
  • Dimension:

    80*12.7*12.7mm
  • Rated Output:

    1.0 mV/V
  • Protection Class:

    PI65
Inquiry Now
Product Details

Kitchen scale Load Cell NA27

The NA27 is a low capacity electronic scale load cell and can be used individually in kitchen scales and portable scales. The moment insensitive design allows for simple installations.


Key Features

Low profile and capacity

Aluminum construction
Capacity: 0.6-6kg
Accuracy:0.03%R.O.

Usage & Applications
Kitchen scales

Portable scales

Balance

Jewelry scales

Electronic scales

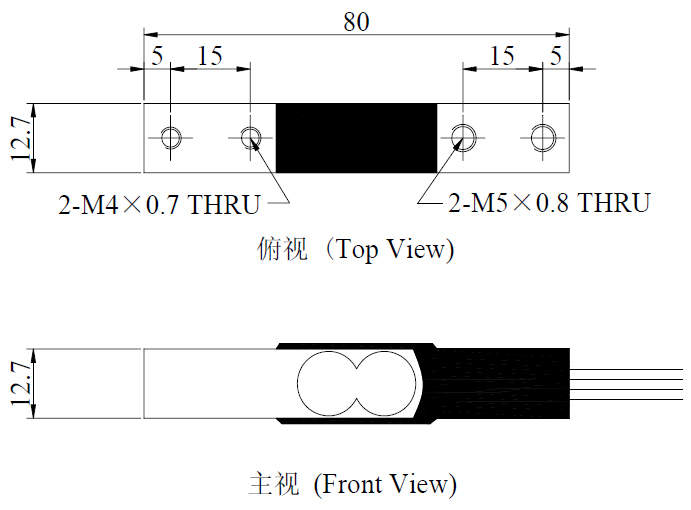

Dimension

NA27 Specification

Rated Capacities

0.61235610kg

Rated Output

1.0 ±0.15mV/V

Zero Balance

±0.1000 mV/V

Non-linearity

0.03 %R.O.

Hysteresis

0.03 %R.O.

Repeatability

0.03 %R.O.

30mins Creep

0.03 %R.O.

30mins Return

0.03 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.01 %R.O./

Temperature Effect On Zero

0.05 %R.O./

Input Impedance

1115±10%Ω

Output Impedance

1000±10% Ω

Insulation Impedance

≥2000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Aluminum Alloy

Protection Class

IP65

Cable

φ0.8×0.25m

Recommended Platform Size

150×150 mm

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
