Stainless Steel Load Cell NA1/R (10-50kg)
The NA1/R is a low profile design, low to medium capacity stainless steel shear beam load cell ideal for a wide range of weighing scales. The stainless steel weighing sensor is suitable for retail scales and industrial weighing systems. Particularly robust for long-term use in harsh industrial environment.
Key Features：
Stainless steel construction
Special industrialized surface treatment
High protection class, low profile design, easy to install
Effective resistance to corrosive substances
Particularly robust for long-term use in harsh industrial environment
Usage & Applications：
Pricing scales, belt scales and various weighing equipment;
Food, medical and chemical industries;
Industrial weighing systems, etc.

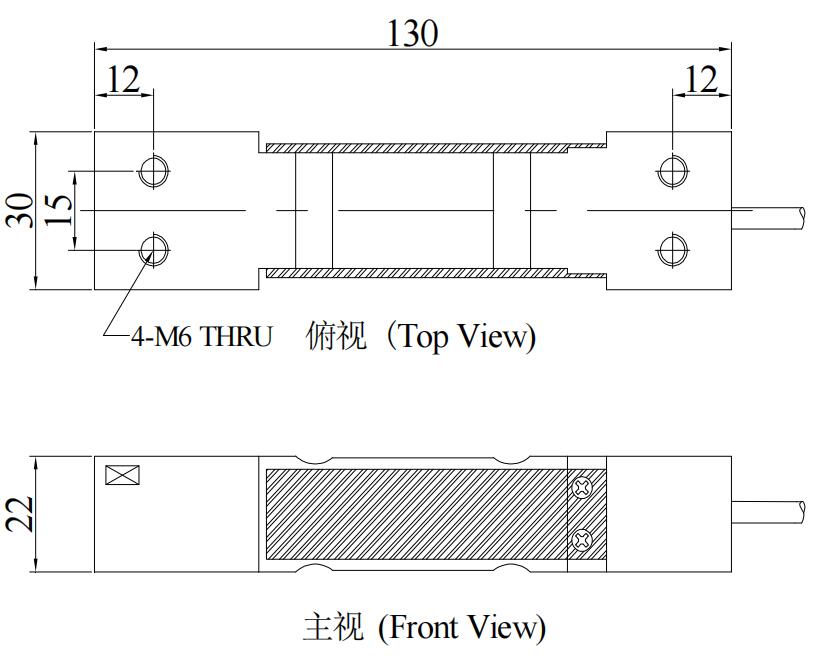

Dimension：
NA1/R Specification：
|
Rated Capacities |
10,20,35,50（kg） |
|
Rated Output |
2.0 mV/V±10% |
|
Zero Balance |
±0.0200 mV/V |
|
Non-linearity |
0.02 %R.O. |
|
Hysteresis |
0.02 %R.O. |
|
Repeatability |
0.02 %R.O. |
|
30mins Creep |
0.02 %R.O. |
|
30mins Return |
0.02 %R.O. |
|
Safe Overload |
150 %R.O. |
|
Ultimate Overload |
200 %R.O. |
|
Temperature Effect On Output |
0.002 %R.O./℃ |
|
Temperature Effect On Zero |
0.003 %R.O./℃ |
|
Input Impedance |
390±15 Ω |
|
Output Impedance |
350±5 Ω |
|
Insulation Impedance |
≥5000 MΩ/(50VDC) |
|
Recommended Excitation |
5~12 VDC |
|
Maximum Excitation |
15 VDC |
|
OperatingTemperatureRange |
-20~60 ℃ |
|
Construction |
Stainless Steel |
|
Protection Class |
IP67 / IP68 |
|
Cable |
φ4 ×2 m |
|
Recommended Platform Size |
350×400 mm |
|
Mode of Connection |
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-） |
