High quality load cell sensor

High accuracy parallel beam load cell NA4 C3 OIML

High Precision Load Cell NA4 C3 is environmentally sealed with potting compound to ensure durability. The Aluminum Alloy Sensor is easy to install. Approval: OIML R60 C3; test certificate number: NO.R60-2000-NL1-16.10.
  • Item NO.:

    NA4 C3
  • Product Orgin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    100% payment before shipment
  • Capacities:

    60-800kg
  • Material:

    Aluminum Alloy
  • Dimension:

    150*45*40mm
  • Rated Output:

    2.0mV/V
  • Protection Class:

    PI66/PI67
Inquiry Now
Product Details

High Precision Load Cell NA4 C3

High Precision Load Cell NA4 C3 is environmentally sealed with potting compound to ensure durability. The Aluminum Alloy Sensor is easy to install. Approval: OIML R60 C3; test certificate number: NO.R60-2000-NL1-16.10.


Key Features

Accuracy class C3

Calibrated to national standards

Aluminum alloy material

Special Sizes and ranges available


Usage & Applications
price computing scales
counting scales
weighing scales
retail scales

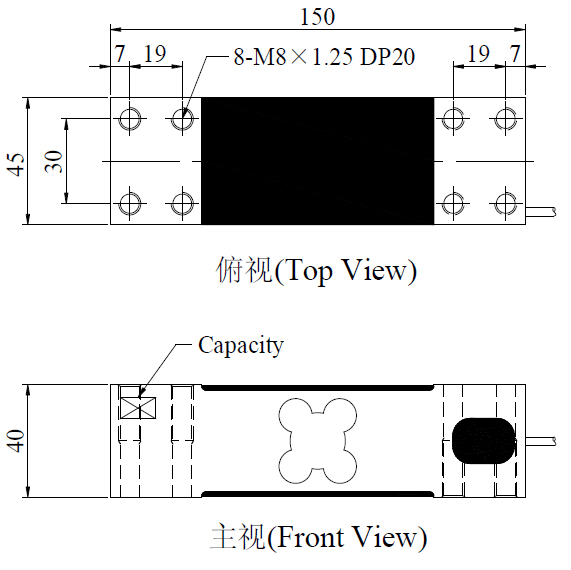

Dimension

NA4 C3 Specification

Rated Capacities

60~800(kg)

Rated Output

2.0 mV/V±5%

Zero Balance

±0.0200 mV/V

Accuracy class

OIML C3

Max No.of loadcell interval(nmax)

3000

Min No.of loadcell interval(Vmin)

Emax/7000

Non-linearity

0.017 %R.O.

Hysteresis

0.017 %R.O.

Repeatability

0.017 %R.O.

30mins Creep

0.017 %R.O.

30mins Return

0.017 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.0015 %R.O./

Temperature Effect On Zero

0.002 %R.O./

Input Impedance

410±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

≥5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Aluminum Alloy

Protection Class

IP66 / IP67

Cable

φ5×2m

Recommended Platform Size

600×600 mm

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
